PRODUCTS: Brake Calipers 3000/4000

Applications
• NASCAR Winston Cup
• Northwest/Southwest Tour
• Late Model Dirt
• Northeast Modifieds
• NASCAR BGN
• NASCAR Supertrucks		 • SCCA
• ASA
• Sprint Cars
• All Pro
• IMSA
• ARCA

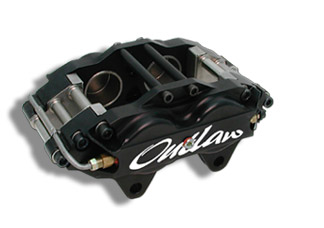

Outlaw 3000/4000 Features
• Billet Aluminum housing design. (Superior in strength to cast calipers).
• Six bolt, multi-ribbed housing. (Increases rigidity and reduces deflection for improved pedal feel).
• Dual center bridge bolts. (Reduce caliper flex).
• Open bridge design. (Reduces conductive heating of caliper by directing heat out through the caliper housing).
• Stainless steel pistons. (Retard heat transfer to brake fluid). Titanium optional.
• Differential size piston bores. (Eliminates excessive pad taper).
• Pad abutement plates. (Eliminates pad dig-in).
• High Temperature, square cut piston seals. (Controls piston retraction for zero drag).
• Insulated Stainless steel crossover tube.
• Standard 3.5" mounting pattern.
• Can be used with fluid recirculating systems.

Outlaw 4000 only
• Stainless steel Heat Shields. (Blocks radiant heat absorption from disc and pad backing plates).



30004000

Specifications
Housing Material Billet Aluminum Disc Diameter 11.75" - 13.00" (298,5 - 330,2 mm)
Mounting Centers 3.5" (88,9 mm) Pad Type PFC 751 HB 101
Inlet Threads 1/8" NPT Pad Area 7.21 sq/in. (46,5 sq/cm.)
No. Pistons Four Pad Thickness .80" (20,3 mm)
Piston Material Stainless Steel
(Titanium Optional)		 Weight 3.9 lbs.
Disc Thickness .38" - .81" - 1.25"
(9,7 - 20,6 - 31,8 mm)

Part Number 3000 RH/LH Bore Size Disc Width
170-1630 3000 LH 1.12"/1.12" (28,5 - 28,5 mm) .81" (20,6mm)
170-1635 3000 RH 1.12"/1.12" (28,5 - 28,5 mm) .81" (20,6mm)
170-1640 3000 LH 1.12"/1.12" (28,5 - 28,5 mm) 1.25" (31,8 mm)
170-1645 3000 RH 1.12"/1.12" (28,5 - 28,5 mm) 1.25" (31,8 mm)
170-1650 3000 LH 1.25"/1.25" (31,8 - 31,8 mm) .81" (20,6mm)
170-1655 3000 RH 1.25"/1.25" (31,8 - 31,8 mm) .81" (20,6mm)
170-1660 3000 LH 1.25"/1.25" (31,8 - 31,8 mm) 1.25" (31,8 mm)
170-1665 3000 RH 1.25"/1.25" (31,8 - 31,8 mm) 1.25" (31,8 mm)
170-1670 3000 LH 1.38"/1.38" (35,1 - 35,1 mm) .81" (20,6mm)
170-1675 3000 RH 1.38"/1.38" (35,1 - 35,1 mm) .81" (20,6mm)
170-1680 3000 LH 1.38"/1.38" (35,1 - 35,1 mm) 1.25" (31,8 mm)
170-1685 3000 RH 1.38"/1.38" (35,1 - 35,1 mm) 1.25" (31,8 mm)
170-1690 3000 LH 1.75"/1.62" (44,5 - 41,2 mm) .81" (20,6mm)
170-1695 3000 RH 1.75"/1.62" (44,5 - 41,2 mm) .81" (20,6mm)
170-1700 3000 LH 1.75"/1.62" (44,5 - 41,2 mm) 1.25" (31,8 mm)
170-1705 3000 RH 1.75"/1.62" (44,5 - 41,2 mm) 1.25" (31,8 mm)
170-1708 3000 LH 1.88"/1.75" (47,8 - 44,5 mm) .38" (9,7 mm)
170-1709 3000 RH 1.88"/1.75" (47,8 - 44,5 mm) .38" (9,7 mm)
170-1710 3000 LH 1.88"/1.75" (47,8 - 44,5 mm) .81" (20,6mm)
170-1715 3000 RH 1.88"/1.75" (47,8 - 44,5 mm) .81" (20,6mm)
170-1720 3000 LH 1.88"/1.75" (47,8 - 44,5 mm) 1.25" (31,8 mm)
170-1725 3000 RH 1.88"/1.75" (47,8 - 44,5 mm) 1.25" (31,8 mm)
170-2108 3000 LH 1.88"/1.88" (47,8 - 47,8 mm) .38" (9,7 mm)
170-2109 3000 RH 1.88"/1.88" (47,8 - 47,8 mm) .38" (9,7 mm)
170-2110 3000 LH 1.88"/1.88" (47,8 - 47,8 mm) .81" (20,6mm)
170-2115 3000 RH 1.88"/1.88" (47,8 - 47,8 mm) .81" (20,6mm)
170-2120 3000 LH 1.88"/1.88" (47,8 - 47,8 mm) 1.25" (31,8 mm)
170-2125 3000 RH 1.88"/1.88" (47,8 - 47,8 mm) 1.25" (31,8 mm)

Part Number 4000 RH/LH Bore Size Disc Width
170-1730 4000 LH 1.12"/1.12" (28,5 - 28,5 mm) .81" (20,6mm)
170-1735 4000 RH 1.12"/1.12" (28,5 - 28,5 mm) .81" (20,6mm)
170-1740 4000 LH 1.12"/1.12" (28,5 - 28,5 mm) 1.25" (31,8 mm)
170-1745 4000 RH 1.12"/1.12" (28,5 - 28,5 mm) 1.25" (31,8 mm)
170-1750 4000 LH 1.25"/1.25" (31,8 - 31,8 mm) .81" (20,6mm)
170-1755 4000 RH 1.25"/1.25" (31,8 - 31,8 mm) .81" (20,6mm)
170-1760 4000 LH 1.25"/1.25" (31,8 - 31,8 mm) 1.25" (31,8 mm)
170-1765 4000 RH 1.25"/1.25" (31,8 - 31,8 mm) 1.25" (31,8 mm)
170-1770 4000 LH 1.38"/1.38" (35,1 - 35,1 mm) .81" (20,6mm)
170-1775 4000 RH 1.38"/1.38" (35,1 - 35,1 mm) .81" (20,6mm)
170-1780 4000 LH 1.38"/1.38" (35,1 - 35,1 mm) 1.25" (31,8 mm)
170-1785 4000 RH 1.38"/1.38" (35,1 - 35,1 mm) 1.25" (31,8 mm)
170-1790 4000 LH 1.75"/1.62" (44,5 - 41,2 mm) .81" (20,6mm)
170-1795 4000 RH 1.75"/1.62" (44,5 - 41,2 mm) .81" (20,6mm)
170-1800 4000 LH 1.75"/1.62" (44,5 - 41,2 mm) 1.25" (31,8 mm)
170-1805 4000 RH 1.75"/1.62" (44,5 - 41,2 mm) 1.25" (31,8 mm)
170-1808 4000 LH 1.88"/1.75" (47,8 - 44,5 mm) .38" (9,7 mm)
170-1809 4000 RH 1.88"/1.75" (47,8 - 44,5 mm) .38" (9,7 mm)
170-1810 4000 LH 1.88"/1.75" (47,8 - 44,5 mm) .81" (20,6mm)
170-1815 4000 RH 1.88"/1.75" (47,8 - 44,5 mm) .81" (20,6mm)
170-1820 4000 LH 1.88"/1.75" (47,8 - 44,5 mm) 1.25" (31,8 mm)
170-1825 4000 RH 1.88"/1.75" (47,8 - 44,5 mm) 1.25" (31,8 mm)
170-2122 4000 LH 1.88"/1.88" (47,8 - 47,8 mm) .38" (9,7 mm)
170-2127 4000 RH 1.88"/1.88" (47,8 - 47,8 mm) .38" (9,7 mm)
170-2123 4000 LH 1.88"/1.88" (47,8 - 47,8 mm) .81" (20,6mm)
170-2128 4000 RH 1.88"/1.88" (47,8 - 47,8 mm) .81" (20,6mm)
170-2121 4000 LH 1.88"/1.88" (47,8 - 47,8 mm) 1.25" (31,8 mm)
170-2126 4000 RH 1.88"/1.88" (47,8 - 47,8 mm) 1.25" (31,8 mm)
